DIN 472/D1300 Internal Retaining Rings
DIN 472/D1300 Internal Retaining Rings, Retaining rings for bore, made of spring steel, black oxide, size 10-300 from professional Retaining Rings manufacturer in China
Standard: DIN 472 / D1300;
Material: Spring Steel;
Hardness: HRC44-HRC52
 |
 |

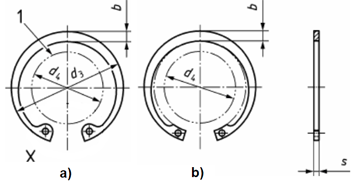

DIN 472/D1300 Internal Retaining Rings specification:
| SIZE | RING DIMENSIONS | WEIGHT | ||||
| d1 | S | d3 | a max | b ≈ | d5 min | Kg/1000Pcs |
| 8 | 0.80 | 8.7 | 2.4 | 1.1 | 1.0 | 0.122 |
| 9 | 0.80 | 9.8 | 2.5 | 1.3 | 1.0 | 0.147 |
| 10 | 1.00 | 10.8 | 3.2 | 1.4 | 1.2 | 0.280 |
| 11 | 1.00 | 11.8 | 3.3 | 1.5 | 1.2 | 0.296 |
| 12 | 1.00 | 13.0 | 3.4 | 1.7 | 1.5 | 0.310 |
| 13 | 1.00 | 14.1 | 3.6 | 1.8 | 1.5 | 0.370 |
| 14 | 1.00 | 15.1 | 3.7 | 1.9 | 1.7 | 0.430 |
| 15 | 1.00 | 16.2 | 3.7 | 2.0 | 1.7 | 0.470 |
| 16 | 1.00 | 17.3 | 3.8 | 2.0 | 1.7 | 0.510 |
| 17 | 1.00 | 18.3 | 3.9 | 2.1 | 1.7 | 0.557 |
| 18 | 1.00 | 19.5 | 4.1 | 2.2 | 2.0 | 0.670 |
| 19 | 1.00 | 20.5 | 4.1 | 2.2 | 2.0 | 0.680 |
| 20 | 1.00 | 21.5 | 4.2 | 2.3 | 2.0 | 0.730 |
| 21 | 1.00 | 22.5 | 4.2 | 2.4 | 2.0 | 0.800 |
| 22 | 1.00 | 23.5 | 4.2 | 2.5 | 2.0 | 0.860 |
| 23 | 1.20 | 24.6 | 4.2 | 2.5 | 2.0 | 1.113 |
| 24 | 1.20 | 25.9 | 4.4 | 2.6 | 2.0 | 1.250 |
| 25 | 1.20 | 26.9 | 4.5 | 2.7 | 2.0 | 1.280 |
| 26 | 1.20 | 27.9 | 4.7 | 2.8 | 2.0 | 1.464 |
| 27 | 1.20 | 29.1 | 4.7 | 2.9 | 2.0 | 1.540 |
| 28 | 1.20 | 30.1 | 4.8 | 2.9 | 2.0 | 1.640 |
| 29 | 1.20 | 31.1 | 4.8 | 3.0 | 2.0 | 1.720 |
| 30 | 1.20 | 32.1 | 4.8 | 3.0 | 2.0 | 1.810 |
| 31 | 1.20 | 33.4 | 5.2 | 3.2 | 2.5 | 1.952 |
| 32 | 1.20 | 34.4 | 5.4 | 3.2 | 2.5 | 2.080 |
| 33 | 1.20 | 35.5 | 5.4 | 3.3 | 2.5 | 2.182 |
| 34 | 1.50 | 36.5 | 5.4 | 3.3 | 2.5 | 2.930 |
| 35 | 1.50 | 37.8 | 5.4 | 3.4 | 2.5 | 3.150 |
| 36 | 1.50 | 38.8 | 5.4 | 3.5 | 2.5 | 3.300 |
| 37 | 1.50 | 39.8 | 5.5 | 3.6 | 2.5 | 3.361 |
| 38 | 1.50 | 40.8 | 5.5 | 3.7 | 2.5 | 3.530 |
| 39 | 1.50 | 42.0 | 5.6 | 3.8 | 2.5 | 3.690 |
| 40 | 1.75 | 43.5 | 5.8 | 3.9 | 2.5 | 4.830 |
| 41 | 1.75 | 44.5 | 5.9 | 4.0 | 2.5 | 5.200 |
| 42 | 1.75 | 45.5 | 5.9 | 4.1 | 2.5 | 5.320 |
| 43 | 1.75 | 46.5 | 5.9 | 4.2 | 2.5 | 5.550 |
| 44 | 1.75 | 47.5 | 6.0 | 4.2 | 2.5 | 5.583 |
| 45 | 1.75 | 48.5 | 6.2 | 4.3 | 2.5 | 5.800 |
| 46 | 1.75 | 49.5 | 6.3 | 4.4 | 2.5 | 5.990 |
| 47 | 1.75 | 50.5 | 6.4 | 4.4 | 2.5 | 6.060 |
| 48 | 1.75 | 51.5 | 6.4 | 4.5 | 2.5 | 6.350 |
| 49 | 1.75 | 52.5 | 6.5 | 4.5 | 2.5 | 6.527 |
| 50 | 2.00 | 54.2 | 6.5 | 4.6 | 2.5 | 7.920 |
| 51 | 2.00 | 55.2 | 6.5 | 4.7 | 2.5 | 8.250 |
| 52 | 2.00 | 56.2 | 6.7 | 4.7 | 2.5 | 8.220 |
| 53 | 2.00 | 57.2 | 6.7 | 4.9 | 2.5 | 8.440 |
| 54 | 2.00 | 58.2 | 6.7 | 5.0 | 2.5 | 8.770 |
| 55 | 2.00 | 59.2 | 6.8 | 5.0 | 2.5 | 8.800 |
| 56 | 2.00 | 60.2 | 6.8 | 5.1 | 2.5 | 8.807 |
| 57 | 2.00 | 61.2 | 6.8 | 5.1 | 2.5 | 9.340 |
| 58 | 2.00 | 62.2 | 6.9 | 5.2 | 2.5 | 9.250 |
| 60 | 2.00 | 64.2 | 7.3 | 5.4 | 2.5 | 10.160 |
| 62 | 2.00 | 66.2 | 7.3 | 5.5 | 2.5 | 10.630 |
| 63 | 2.00 | 67.2 | 7.3 | 5.6 | 2.5 | 10.940 |
| 64 | 2.00 | 68.2 | 7.4 | 5.7 | 2.5 | 10.880 |
| 65 | 2.50 | 69.2 | 7.6 | 5.8 | 3.0 | 16.140 |
| 67 | 2.50 | 71.5 | 7.7 | 6.0 | 3.0 | 16.520 |
| 68 | 2.50 | 72.5 | 7.8 | 6.1 | 3.0 | 17.350 |
| 70 | 2.50 | 74.5 | 7.8 | 6.2 | 3.0 | 16.860 |
| 72 | 2.50 | 76.5 | 7.8 | 6.4 | 3.0 | 18.200 |
| 75 | 2.50 | 79.5 | 7.8 | 6.6 | 3.0 | 19.240 |
| 76 | 2.50 | 80.5 | 7.8 | 6.6 | 3.0 | 22.226 |
| 77 | 2.50 | 82.5 | 8.5 | 6.8 | 3.0 | 21.080 |
| 78 | 2.50 | 82.5 | 8.5 | 6.8 | 3.0 | 21.080 |
| 80 | 2.50 | 85.5 | 8.5 | 7.0 | 3.0 | 21.610 |
| 85 | 3.00 | 90.5 | 8.6 | 7.2 | 3.5 | 31.130 |
| 87 | 3.00 | 93.5 | 8.6 | 7.4 | 3.5 | 32.812 |
| 88 | 3.00 | 93.5 | 8.6 | 7.4 | 3.5 | 32.130 |
| 90 | 3.00 | 95.5 | 8.6 | 7.6 | 3.5 | 32.170 |
| 92 | 3.00 | 97.5 | 8.7 | 7.8 | 3.5 | 34.168 |
| 95 | 3.00 | 100.5 | 8.8 | 8.1 | 3.5 | 35.590 |
| 97 | 3.00 | 103.5 | 9.0 | 8.3 | 3.5 | 38.552 |
| 98 | 3.00 | 103.5 | 9.0 | 8.3 | 3.5 | 35.781 |
| 100 | 3.00 | 105.5 | 9.2 | 8.4 | 3.5 | 37.760 |
| 102 | 4.00 | 108.0 | 9.5 | 8.5 | 3.5 | 56.800 |
| 105 | 4.00 | 112.0 | 9.5 | 8.7 | 3.5 | 57.330 |
| 107 | 4.00 | 115.0 | 9.5 | 8.9 | 3.5 | 62.700 |
| 108 | 4.00 | 115.0 | 9.5 | 8.9 | 3.5 | 60.560 |
| 110 | 4.00 | 117.0 | 10.4 | 9.0 | 3.5 | 61.270 |
| 112 | 4.00 | 119.0 | 10.5 | 9.1 | 3.5 | 65.970 |
| 115 | 4.00 | 122.0 | 10.5 | 9.3 | 3.5 | 68.430 |
| 117 | 4.00 | 125.0 | 10.7 | 9.6 | 3.5 | 70.730 |
| 118 | 4.00 | 125.0 | 10.7 | 9.6 | 3.5 | 70.730 |
| 120 | 4.00 | 127.0 | 11.0 | 9.7 | 3.5 | 71.350 |
| 125 | 4.00 | 132.0 | 11.0 | 10.0 | 4.0 | 79.450 |
| 130 | 4.00 | 137.0 | 11.0 | 10.2 | 4.0 | 83.200 |
| 135 | 4.00 | 142.0 | 11.2 | 10.5 | 4.0 | 88.330 |
| 140 | 4.00 | 147.0 | 11.2 | 10.7 | 4.0 | 91.390 |
| 145 | 4.00 | 152.0 | 11.4 | 10.9 | 4.0 | 94.980 |
| 150 | 4.00 | 158.0 | 12.0 | 11.2 | 4.0 | 100.350 |
| 155 | 4.00 | 164.0 | 12.0 | 11.4 | 4.0 | 104.160 |
| 160 | 4.00 | 169.0 | 13.0 | 11.6 | 4.0 | 125.350 |
| 165 | 4.00 | 174.5 | 13.0 | 11.8 | 4.0 | 138.000 |
| 170 | 4.00 | 179.5 | 13.5 | 12.2 | 4.0 | 139.680 |
| 175 | 4.00 | 184.5 | 13.5 | 12.7 | 4.0 | 154.800 |
| 178 | 4.00 | 187.5 | 14.2 | 12.9 | 4.0 | 148.900 |
| 180 | 4.00 | 189.5 | 14.2 | 13.2 | 4.0 | 161.540 |
| 185 | 4.00 | 194.5 | 14.2 | 13.7 | 4.0 | 171.200 |
| 190 | 4.00 | 199.5 | 14.2 | 13.8 | 4.0 | 175.000 |
| 195 | 4.00 | 204.5 | 14.2 | 13.8 | 4.0 | 184.900 |
| 200 | 4.00 | 209.5 | 14.2 | 14.0 | 4.0 | 187.940 |
| 205 | 5.00 | 217.0 | 14.2 | 14.0 | 4.0 | 273.300 |
| 210 | 5.00 | 222.0 | 14.2 | 14.0 | 4.0 | 278.770 |
| 215 | 5.00 | 227.0 | 14.2 | 14.0 | 4.0 | 288.450 |
| 220 | 5.00 | 232.0 | 14.2 | 14.0 | 4.0 | 297.500 |
| 225 | 5.00 | 237.0 | 14.2 | 14.0 | 4.0 | 303.270 |
| 230 | 5.00 | 242.0 | 14.2 | 14.0 | 4.0 | 309.720 |
| 235 | 5.00 | 247.0 | 14.2 | 14.0 | 4.0 | 319.310 |
| 240 | 5.00 | 252.0 | 14.2 | 14.0 | 4.0 | 321.800 |
| 245 | 5.00 | 257.0 | 14.2 | 14.0 | 4.0 | 340.000 |
| 250 | 5.00 | 262.0 | 14.2 | 14.0 | 4.0 | 337.680 |
| 255 | 5.00 | 270.0 | 16.2 | 16.0 | 5.0 | 390.670 |
| 260 | 5.00 | 275.0 | 16.2 | 16.0 | 5.0 | 397.250 |
| 265 | 5.00 | 280.0 | 16.2 | 16.0 | 5.0 | 405.090 |
| 270 | 5.00 | 285.0 | 16.2 | 16.0 | 5.0 | 415.780 |
| 275 | 5.00 | 290.0 | 16.2 | 16.0 | 5.0 | 422.600 |
| 280 | 5.00 | 295.0 | 16.2 | 16.0 | 5.0 | 431.430 |
| 285* | 5.00 | 300.0 | 16.2 | 16.0 | 5.0 | 434.000 |
| 290 | 5.00 | 305.0 | 16.2 | 16.0 | 5.0 | 437.260 |
| 295 | 5.00 | 310.0 | 16.2 | 16.0 | 5.0 | 449.900 |
| 300 | 5.00 | 315.0 | 16.2 | 16.0 | 5.0 | 458.500 |
