SN 60727 VSKD Curved Spring Lock Washer
SN 60727 VSKD Curved Spring Lock Washer , made of Steel or Spring Steel, M3- M24 from professional Spring Lock Washer manufacturer in China.
SN 60727 VSKD Curved Spring Washer
Standard: SN 60727
Size: M3 – M24
Material: Steel; Surface: Zinc Plated
 |
 |

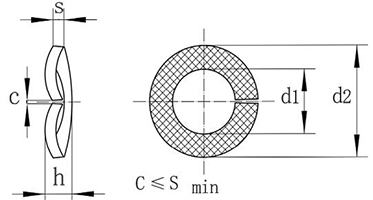

SN 60727 VSKD Curved Spring Lock Washer specification:
| Size | d max | d min | dc max | H min | b max | b min | h max | h min | r | kg/1000Pcs |
| Φ2.5 | 2.9 | 2.6 | 5.1 | 1.0 | 1.1 | 0.9 | 0.7 | 0.5 | 0.1 | 0.05 |
| Φ3 | 3.4 | 3.1 | 6.2 | 1.3 | 1.4 | 1.2 | 0.9 | 0.7 | 0.1 | 0.11 |
| Φ4 | 4.4 | 4.1 | 7.6 | 1.4 | 1.6 | 1.4 | 1.0 | 0.8 | 0.2 | 0.18 |
| Φ5 | 5.4 | 5.1 | 9.2 | 1.8 | 1.9 | 1.7 | 1.3 | 1.1 | 0.2 | 0.36 |
| Φ6 | 6.5 | 6.1 | 11.8 | 2.4 | 2.65 | 2.35 | 1.7 | 1.5 | 0.3 | 0.83 |
| Φ8 | 8.5 | 8.1 | 14.8 | 3.0 | 3.15 | 2.85 | 2.1 | 1.9 | 0.5 | 1.6 |
| Φ10 | 10.6 | 10.1 | 18 | 3.4 | 3.7 | 3.3 | 2.35 | 2.05 | 0.5 | 2.5 |
| Φ12 | 12.6 | 12.1 | 21 | 3.9 | 4.2 | 3.8 | 2.65 | 2.35 | 1.0 | 3.8 |
| Φ16 | 16.9 | 16.1 | 27.3 | 5.5 | 5.2 | 4.8 | 3.7 | 3.3 | 1.0 | 8.9 |
| Φ20 | 21.2 | 20.2 | 33.6 | 6.3 | 6.2 | 5.8 | 4.2 | 3.8 | 1.0 | 15.2 |
| Φ24 | 25.5 | 24.5 | 40 | 6.3 | 7.25 | 6.75 | 5.2 | 4.8 | 1.6 | 26.2 |
