DIN 6319 Spherical Washer / Conical Seat
DIN 6319 Spherical Washer / Conical Seat, made of steel, zinc plated or stainless steel , Size M6 – M24 from professional Spherical Washer manufacturer in China.
DIN 6319 Spherical Washer / Conical Seat
Size: M6 – M24
Material: Steel or Stainless Steel;
Finish: Zinc Plated;
 |
 |

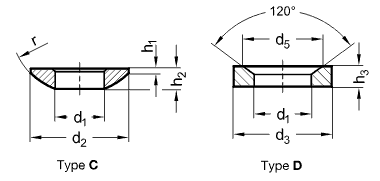

DIN 6319 Spherical Washer / Conical Seat specification:
| Size | d1 H13 Type C |
Type D / G |
d2 | d4 | d5 | h1 | h2 | h3 | h4 |
| M 6 | 6,4 | 7,1 | 12 | 17 | 11 | 0,7 | 2,3 | 2,8 | 4 |
| M 8 | 8,4 | 9,6 | 17 | 24 | 14,5 | 0,6 | 3,2 | 3,5 | 5 |
| M 10 | 10,5 | 12 | 21 | 30 | 18,5 | 0,8 | 4 | 4,2 | 5 |
| M 12 | 13 | 14,2 | 24 | 36 | 20 | 1,1 | 4,6 | 5 | 6 |
| M 14 | 15 | 16,5 | 28 | 40 | 24,8 | 1,2 | 5 | 5,6 | 6 |
| M 16 | 17 | 19 | 30 | 44 | 26 | 1,3 | 5,3 | 6,2 | 7 |
| M 20 | 21 | 23,2 | 36 | 50 | 31 | 2 | 6,3 | 7,5 | 8 |
| M 24 | 25 | 28 | 44 | 60 | 37 | 2,4 | 8,2 | 9,5 | 10 |
| M 30 | 31 | 35 | 56 | 68 | 49 | 3,6 | 11,2 | 12 | 12 |
| M 36 | 37 | 42 | 68 | – | 60 | 4,6 | 14 | 15 | – |
| M 42 | 43 | 49 | 78 | – | 70 | 6,5 | 17 | 18 | – |
| M 48 | 50 | 56 | 92 | – | 82 | 8 | 21 | 22 | – |
