DIN 1481 Spring Pins
DIN 1481 Spring Pins , slotted type spring pin from China manufacturer.
Standard: DIN 1481
Material: Spring steel;
Finish: Black oxide
Size: 1.0mm-8.0mm

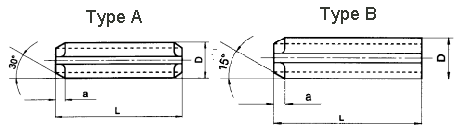

DIN 1481 Type A – Double End chamfered;
DIN 1481 Type B – One End chamfered, the other end flat;
 |
 |
| Standard | Material | Finish | Diameter | Length |
| DIN 1481 | Spring Steel | Black oxide | 1.5 | 5-20mm |
| DIN 1481 | Spring Steel | Black oxide | 2.0 | 5-30mm |
| DIN 1481 | Spring Steel | Black oxide | 2.5 | 5-30mm |
| DIN 1481 | Spring Steel | Black oxide | 3.0 | 5-30mm |
| DIN 1481 | Spring Steel | Black oxide | 3.5 | 10-40mm |
| DIN 1481 | Spring Steel | Black oxide | 4.0 | 10-60mm |
| DIN 1481 | Spring Steel | Black oxide | 4.5 | 10-60mm |
| DIN 1481 | Spring Steel | Black oxide | 5.0 | 10-80mm |
| DIN 1481 | Spring Steel | Black oxide | 6.0 | 10-100mm |
| DIN 1481 | Spring Steel | Black oxide | 8.0 | 10-100mm |
| DIN 1481 | Spring Steel | Black oxide | 10 | 16-120mm |
| DIN 1481 | Spring Steel | Black oxide | 12 | 16-120mm |
