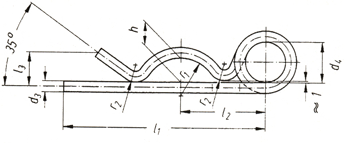

DIN 11024 Double – Spring Cotter
DIN 11024 Double, Spring Cotter made of spring steel, zinc plated, Dia. 2.5mm – 8.0mm from China Spring Cotter Pins Manufacturer.
 |
 |
DIN 11024 Double – Spring Cotter
Standard: DIN 11024 Form D
Material: Spring Steel SAE 1070
Finish: Zinc plated
Size: Wire Dia. 2.0 – 8.0
| Size Dia. |
Axle Dia. (mm) |
Wire Dia (mm) |
Length (mm) |
| 2.5 | 9-11.2 | 2.25 | 42 |
| 3.2 | 11.2-14 | 2.5 | 48 |
| 4.0 | 14-20 | 3.6 | 64 |
| 5.0 | 20-26 | 4.5 | 80 |
| 6.3 | 26-34 | 5.6 | 97 |
| 7.0 | 34-45 | 6.3 | 125 |
| 8.0 | 45-56 | 7.0 | 150 |
