DIN 5417

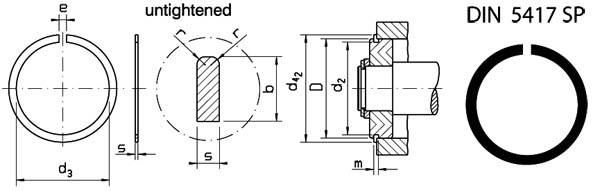

DIN 5417, External Snap Rings, Type SP.
 |
DIN 5417, External Snap Rings, Type SP standard :
| d1 | s-0.1 | b-0.15 | d3 |
| 30 | 1.12 | 3.25 | 27.4 |
| 32 | 1.12 | 3.25 | 29.4 |
| 35 | 1.12 | 3.25 | 32.4 |
| 37 | 1.12 | 3.25 | 34.0 |
| 40 | 1.12 | 3.25 | 37.3 |
| 42 | 1.12 | 3.25 | 38.9 |
| 44 | 1.12 | 3.25 | 40.9 |
| 47 | 1.12 | 4.04 | 43.7 |
| 50 | 1.12 | 4.04 | 46.7 |
| 52 | 1.12 | 4.04 | 48.7 |
| 62 | 1.70 | 4.04 | 58.2 |
| 65 | 1.70 | 4.04 | 61.2 |
| 68 | 1.70 | 4.85 | 63.4 |
| 72 | 1.70 | 4.85 | 67.4 |
| 75 | 1.70 | 4.85 | 70.4 |
| 80 | 1.70 | 4.85 | 75.4 |
| 85 | 1.70 | 4.85 | 80.4 |
| 90 | 2.46 | 4.85 | 85.4 |
| 95 | 2.46 | 4.85 | 90.4 |
| 100 | 2.46 | 4.85 | 95.2 |
| 110 | 2.46 | 4.85 | 105.2 |
| 115 | 2.46 | 4.85 | 110.2 |
| 120 | 2.82 | 7.21 | 113.6 |
| 125 | 2.82 | 7.21 | 118.6 |
| 130 | 2.82 | 7.21 | 123.6 |
| 140 | 2.82 | 7.21 | 133.0 |
| 145 | 2.82 | 7.21 | 138.0 |
| 150 | 2.82 | 7.21 | 142.9 |
| 160 | 2.82 | 7.21 | 152.9 |
| 170 | 3.10 | 9.60 | 161.3 |
| 180 | 3.10 | 9.60 | 171.2 |
| 200 | 3.10 | 9.60 | 191.0 |
| 210 | 3.10 | 9.60 | 200.9 |
| 215 | 3.10 | 9.60 | 205.9 |
| 225 | 3.50 | 10.00 | 214.3 |
| 230 | 3.50 | 10.00 | 219.2 |
